Plastiform M90 - Manual Replicating Compounds

SKU: MT-004-B
£31.00 Ex. Vat
£31.00

M90 is the only malleable product to become rigid after curing. The final impression has a hardness of 90 Shore A, which means that it is non-flexible and cannot deform when removed from the mold. This plastiform can only be used on simple shapes, without any Extraction Constraint.

The rigidity of the M90 allows it to be measurable with contact. This feature can be useful for repeated indicative checks that do not require micron accuracy. Its rigidity is also highly appreciated to protect fragile parts, it prevents vibration and resonance phenomena.

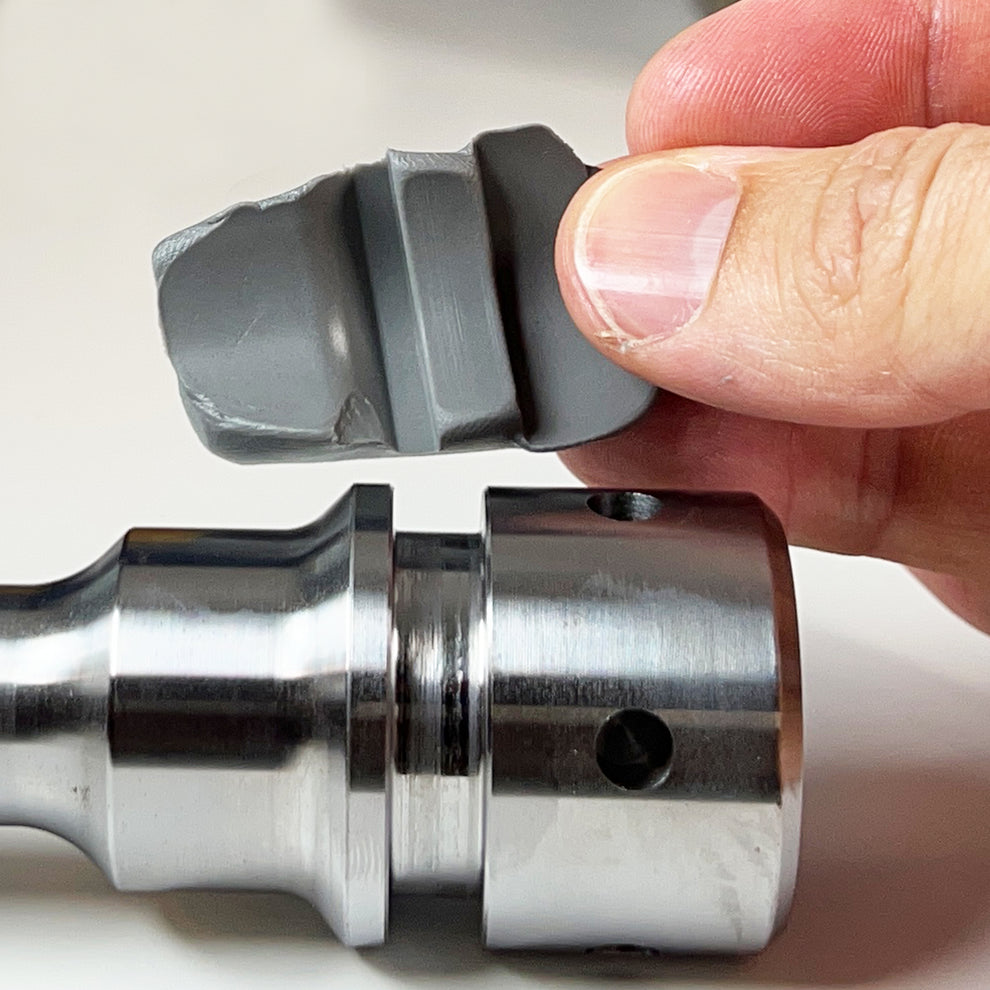

The M90 is recommended for creating rigid impressions of simple external shapes (threads, grooves, grooves, etc.). It is generally used on medium to large parts.

Technical Specs

10 Micron Accuracy

The Manual Product range has an accuracy or +/- 10 Microns

Simple External

M90 is the only malleable product that becomes rigid after curing.

4 Minutes

Cure time of 4 Mins at 20 Degrees

90 Shore A

Final hardness of 90 Shore A, meaning a Rigid Product

Cannot be Sliced

The M90 Is to rigid to slice with the double blade cutter

90ml or 900ml

This product is supplied in 2 pots with an equal split between the total size. ie 90ml = 2x 45ml pots

Manual Putty

This product is a two part putty where 2 equal parts are mixed by hand

Dark Grey

M90 can be identified with its Dark Grey or Charcoal colour
