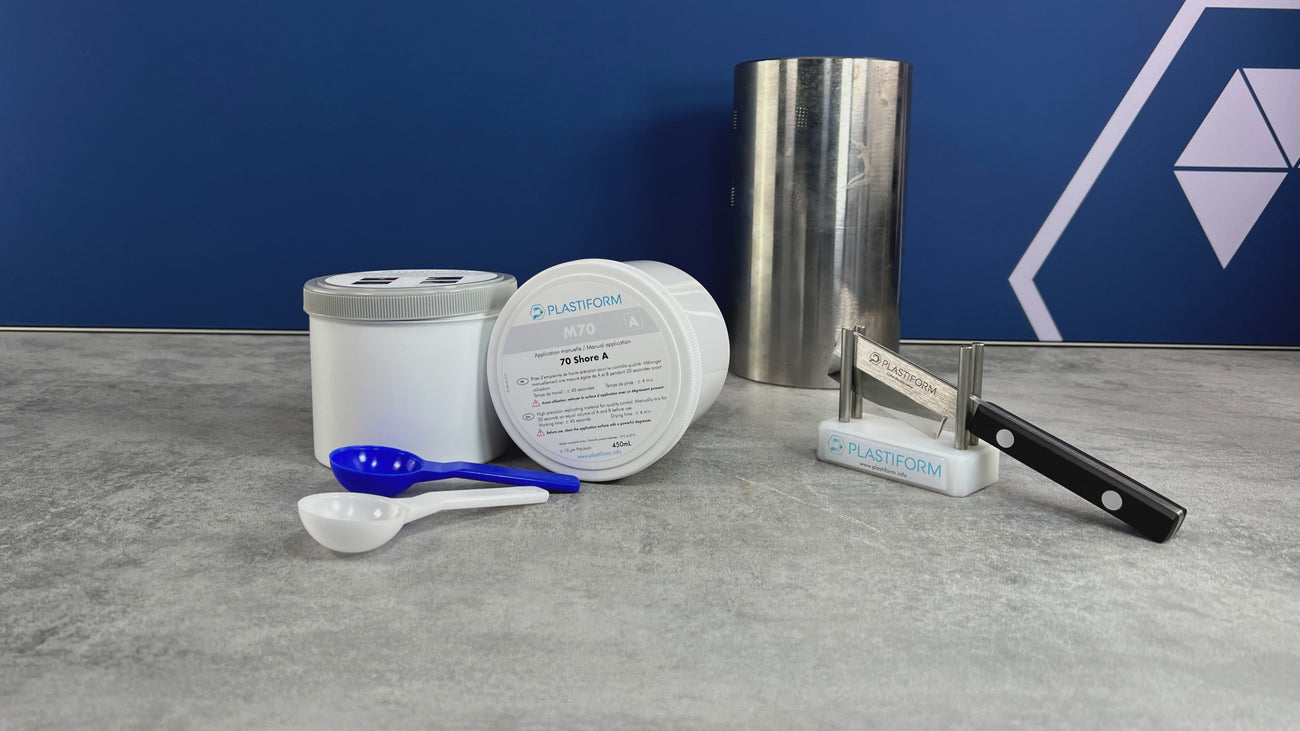

Plastiform M70 - Manual Replicating Compounds

SKU: MT-003-B
£31.00 Ex. Vat
£31.00

Its initial malleable consistency (clay) allows M70 to be applied manually on vertical or overhanging surfaces. The final impression is Semi-Soft (hardness 70 Shore A), and has a low deformation capacity.

It accepts a maximum Extraction Constraint of 5%, and must therefore be used on low complexity shapes. The M70 is recommended for creating simple external shape impressions (threads, grooves, grooves, etc.) on medium to large sized parts. It is also used to create custom precision poses for complex or fragile parts.

The M70 was developed to replace the KV-AD, an old generation PLASTIFORM Malleable. It is possible to cut this impression with the Double Blade Cutter to obtain a profile of the replica. The profiles greatly improve the quality of the final measurement.

Technical Specs

10 Micron Accuracy

The Manual Product range has an accuracy or +/- 10 Microns

Simple External

Designed to be used on Simple External Forms

4 Minutes

Cure time of 4 Mins at 20 Degrees

70 Shore A

Final hardness of 70 Shore A, meaning a Semi Flexible Product

Can be Sliced

An ideal product to slice with the AC-012. The 1mm Slice can be measured on a profile projector or similar

90ml or 900ml

This product is supplied in 2 pots with an equal split between the total size. ie 90ml = 2x 45ml pots

Manual Putty

This product is a two part putty where 2 equal parts are mixed by hand

Grey

M70 is one of the most common Manual products and can be identified with its Grey colour
