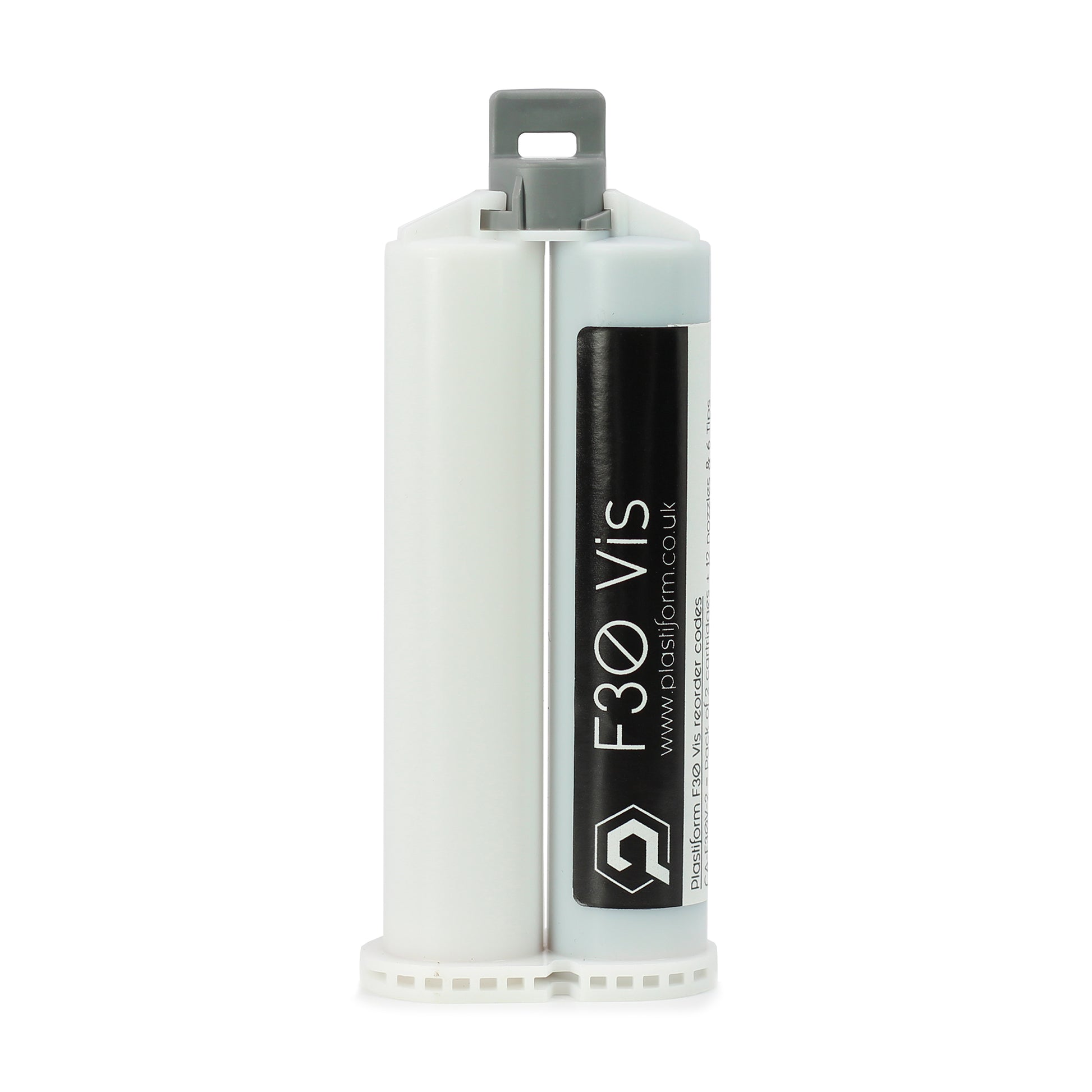

Plastiform F30V Replicating Compounds

F30 Visual is an extremely fluid product, which infiltrates very easily into any cavity. Whether small (diameter up to 0.1 mm) or medium size, the product infiltrates and occupies a maximum of space, with a precision of a micron. Its final impression is very flexible and elastic (hardness 30 Shore A), so it is easy to remove it from a part with undercut.

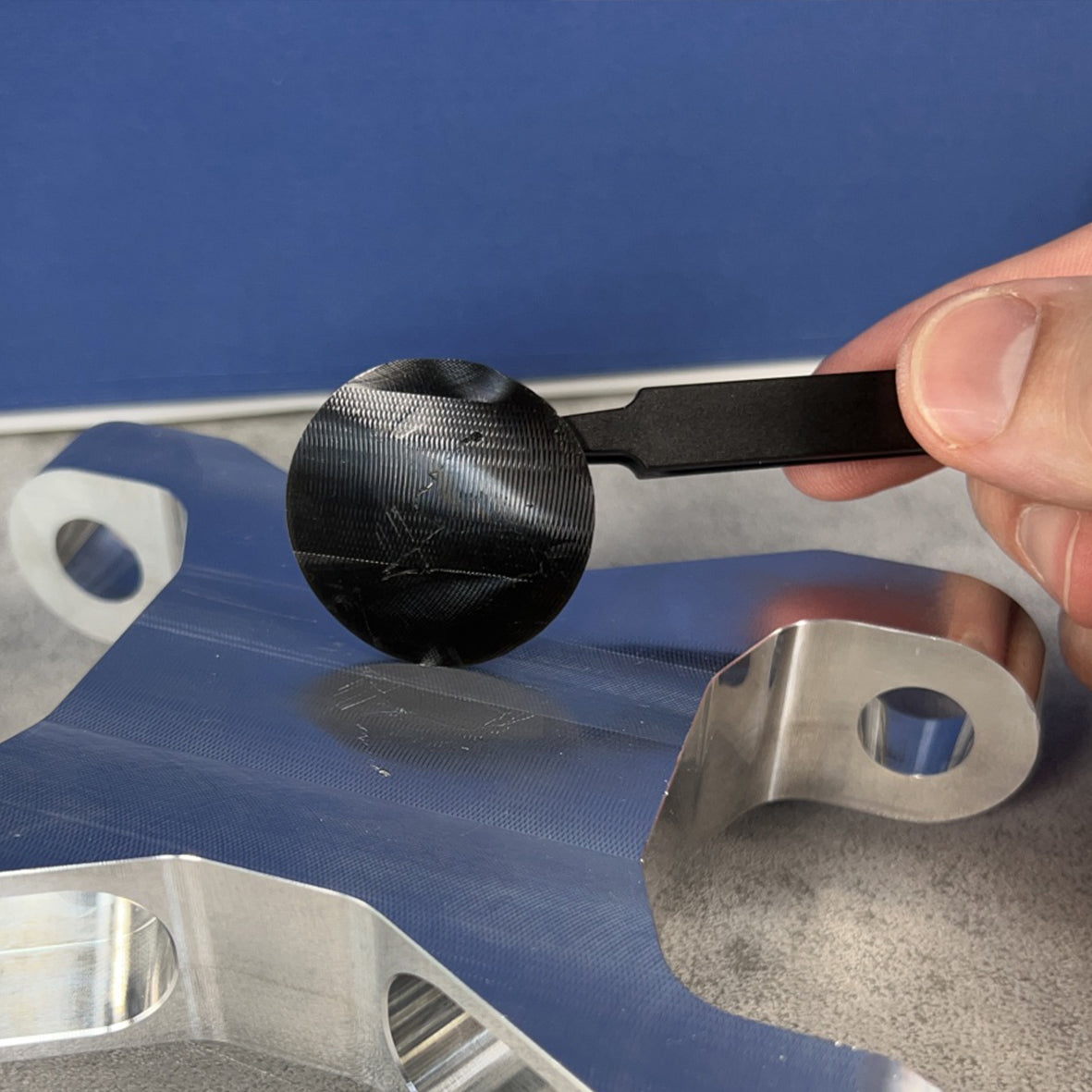

The F30 Visual has been specially developed for visual examinations of the surface condition. The replica accurately transcribes all details to the micron scale, surface defects (tool marks, scratches, streaks, slits, pitting, etc.) as well as shape defects (flatness, undulation, circularity, etc.). Also, the replica is very visually accurate. All surface details (shape, dimension, appearance, surface condition, etc.) are reproduced on the Plastiform. The replica is not altered during the extraction step so that the results are optimal. Similarly, it will not leave any trace of its passage through the controlled area. Its brilliant black color makes it easier to see during the inspection.

The F30 Visual is a very flowable Plastiform. It is recommended to take this factor into account before performing any handling.
